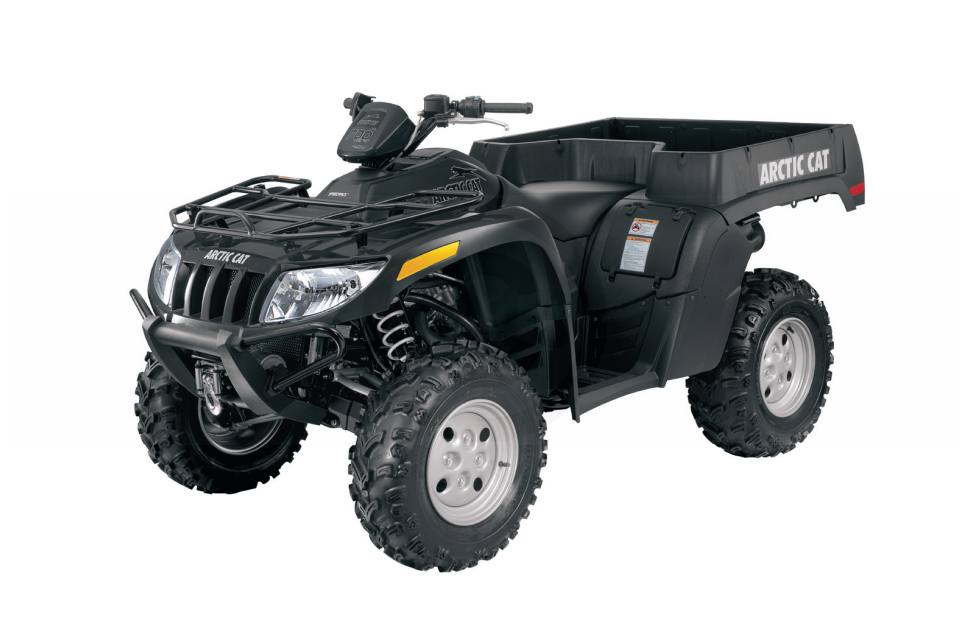

2010 Arctic Cat TBX 700 H1 EFI

Now until September 30, 2010
$1,800.00 Off MSRP
Request a Quote Financing Calculator Financing Form
Click here to view full image.
Request a Quote Financing Calculator Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

You're in that league of riders looking for a hard-working utility machine, convenient enough to haul, but still fun enough to ride. But with the TBX 700 H1 EFI, you'll feel like you're in a league all your own. For instance, the TBX rear dump box that can haul up to 300 lbs. And its 695cc, liquid-cooled engine boosts power through this machine as you zip in and out of even the most demanding trails. Plus, its Duramatic automatic transmission adds the ultimate in engine braking while delivering every bit of horsepower you need. And when you see rough terrain ahead, choose between 2-wheel and 4-wheel drive with just the flip of a switch. For maximum traction, activate the front differential lock. This is the ATV with the muscle you need and the sporty side that you crave.

  • Ride-In Suspension - Fully independent, race-inspired suspension features a lower suspension profile and a lower seat design, resulting in a lower center of gravity yet maintaining 11" of ground clearance. That means more confidence hammering through tight corners on the trail, as well as clearing big nasty obstacles off the trail.
  • 700 H1 EFI Engine - It's go-time with a race-bred 695cc, liquid-cooled EFI featuring a single overhead cam and a single cylinder. The "H" stands for its hemispherical combustion chamber, delivering more efficient combustion resulting in better performance. Electronic fuel injection ensures easy starts and consistent performance in various climates or altitudes. Push the throttle with this one, it answers big-time.
  • Duramatic™ Automatic Transmission - Durable, efficient automatic CVT is easy to operate, and transfers maximum horsepower and torque to the driveshaft. It also features a Hi/Low shift range and a long-life constant tension belt.
  • Digital Gauge - Digital speedometer readings with integrated warning system includes a clock, dual tripmeter, hour meter, fuel gauge and coolant temperature.
  • Electric 2WD/4WD and Front Differential Lock - When the going gets tough, shift from 2-wheel to 4-wheel drive on the fly with just a push of a button. For even more traction, activate the front differential lock by moving the switch to the left.
  • Cargo Box - A hard-working, tiltable rear cargo box is constructed of tough, rustproof plastic and is rated to haul 300 lbs. Perfect for hunting and fishing gear, tools, firewood and cabin toys like outboard motors and water skis. Extra storage is also available in handy side bins.
Specifications
  • Displacement: 695 cc
  • Engine Type: SOHC, 4-stroke, 4-valve
  • Bore & Stroke: 102 x 85 mm
  • Cooling System: Liquid with fan
  • Fuel Capaciy: 5.8 gal / 22.0 L
  • Alternator Capacity: 25.0 amps
  • Speedometer: Digital
  • Odometer: Digital
  • Transmission: Automatic CVT with EBS, Hi/Lo Range and Reverse
  • Drive System: 2/4 WD + Diff Lock
  • Front Brakes: Hydraulic Disc
  • Rear Service Brakes: Hydraulic Disc
  • Front Suspension: Double A-Arm
  • Front Travel: 10 in / 25.4 cm
  • Rear Suspension: Double A-Arm
  • Rear Travel: 10 in / 25.4 cm
  • Front Tires (Pressure): 25 x 8-12 (5)
  • Rear Tires (Pressure): 25 x 10-12 (5)
  • Overall Length: 98 in / 248.9 cm
  • Overall Width: 47.5 in / 120.6 cm
  • Overall Height: 48 in / 121.9 cm
  • Wheelbase: 58 in / 147.3 cm
  • Ground Clearance: 11 in / 27.9 cm
  • Dry Weight: 788 lbs / 357.4 kg
  • Front Rack Capacity: 100 lbs / 45.4 kg
  • Rear Box Capacity: 300 lbs / 136 kg
  • Side Storage Capacity: 20 lbs / 9.1 kg
  • Towing Capacity: 1,050 lbs / 476.3 kg
  • Special Features: Tilting rear box with 300 lb capacity.
  • Color Options: Black

Specifications

Engine
Engine Type SOHC, 4-stroke, 4-valve
Displacement 695 cc
Bore x Stroke 102 x 85 mm
Engine Cooling Liquid with fan
Alternator 25.0 amps
Chassis
Front Suspension Double A-Arm
Front Travel 10 in. (25.4 cm)
Front Brake Type Hydraulic Disc
Front Tires 25 x 8-12
Rear Travel 10 in. (25.4 cm)
Rear Suspension Double A-Arm
Rear Brake Type Hydraulic Disc
Rear Tires 25 x 10-12
Dimensions/Capacities
Dry Weight 788 lbs. (357.4 kg)
Front Rack Capacity 100 lbs. (45.4 kg)
Rear Rack Capacity 300 lbs. (136 kg)
Towing Capacity 1,050 lbs. (476.3 kg)
Fuel Capacity 5.8 gal (22.0 l)
Ground Clearance 11 in. (27.9 cm)
Machine Dimensions (LxWxH) 98 x 47.5 x 48 in. (248.9 x 120.6 x 121.9 cm)
Wheelbase 58 in. (147.3 cm)
Drive Train
Drive Train 2/4 WD + Diff Lock
Transmission Automatic CVT with EBS, Hi/Lo Range and Reverse
General
Speedometer Digital
Odometer Digital
Colors Black

Compare Models

 Print








Year 2010
Manufacturer Arctic Cat
Model TBX 700 H1 EFI
Style Utility
MSRP* $8,799.00
Chassis
Front Suspension Double A-Arm
Front Travel 10 in. (25.4 cm)
Front Brake Type Hydraulic Disc
Front Tires 25 x 8-12
Rear Suspension Double A-Arm
Rear Travel 10 in. (25.4 cm)
Rear Brake Type Hydraulic Disc
Rear Tires 25 x 10-12
Frame
Dimensions/Capacities
Dry Weight 788 lbs. (357.4 kg)
Front Rack Capacity 100 lbs. (45.4 kg)
Rear Rack Capacity 300 lbs. (136 kg)
Towing Capacity 1,050 lbs. (476.3 kg)
Fuel Capacity 5.8 gal (22.0 l)
Ground Clearance 11 in. (27.9 cm)
Machine Dimensions (LxWxH) 98 x 47.5 x 48 in. (248.9 x 120.6 x 121.9 cm)
Wheelbase 58 in. (147.3 cm)
Drive Train
Drive Train 2/4 WD + Diff Lock
Final Drive
Transmission Automatic CVT with EBS, Hi/Lo Range and Reverse
Engine
Engine Type SOHC, 4-stroke, 4-valve
Displacement 695 cc
Bore x Stroke 102 x 85 mm
Cylinders
Engine Cooling Liquid with fan
Fuel System
Starting System
Alternator 25.0 amps
General
Speedometer Digital
Tachometer
Odometer Digital
Lighting
Colors Black
Warranty

Current Promotions

There are currently no promotions available for this product.
